Baghouse Collectors





Avani Environmental International, Inc. offers two classes of baghouse dust collection systems designed for woodworking applications that include the following:

Open-type Interior Mounted Modular Baghouse Systems: The open baghouse systems are designed for ease of usage and installation. Expandable and modular design allows for compact installation with ducting to multiple sources. Multiple outlets allow for high-capacity waste removal or reclaim. Installation is available with pre-fabricated clamp-together ductwork. This system is cost effective and highly efficient with polyester felt fabric bag filters which are 95%+ efficient without a dust cake. Systems can be installed with single or multiple centrifugal fans to meet airflow requirement.

  • Capacity: 3,000 - 8,000 CFM
  • Modular
  • Expandable
  • Direct Drive Fans
  • TEFC Motors
  • Integral Deflectors
  • Heavy-duty Construction
  • Powder Coated Finish
  • Quiet Operation Low dBA
  • Multiple Discharge Options
  • Snap-band Woven Filter Bags
  • Compact Footprint
  • Designed for Low Headroom
  • Rotary Air Lock Discharge Option
  • Custom Control Panels
  • Ductwork Kits for Installation

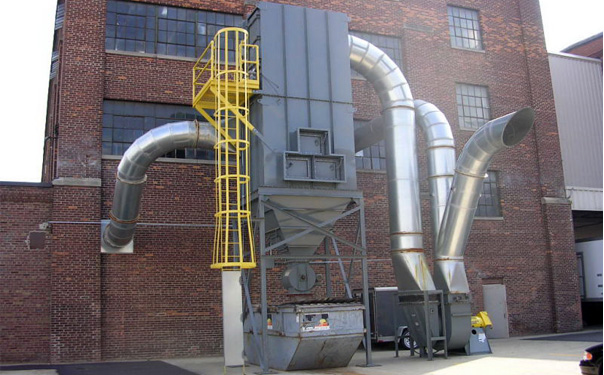

Reverse Pulse Jet Baghouse Systems: Avani Environmental Intl., Inc. provides heavy-duty industrial fabric baghouse dust collector systems designed with unique features that include: integral drop-out chambers for separation of surge loads or irregular shaped particulate, internal screen for protection of the filter bags, wide bag spacing to ensure complete particulate dislodge from cleaning process, and more importantly a pulse jet cleaning system allowing us to operate at higher air-to-cloth ratios than our competitors while ensuring our customer’s maximum filter life.

Systems designed and manufactured for minimal maintenance and maximum collection efficiency guaranteed. Installation, turnkey mechanical, AutoCAD services, PM programs, and pre-fabricated ductwork kits are available through your local Avani Environmental Intl., Inc. regional office.

Engineered systems come complete with the available following features and application specific accessories:

  • Reverse pulse jet cleaning with online and offline programmable cleaning
  • Rotary air locks, access platforms & OSHA approved caged ladders
  • Access to filters with walk-in plenums, bottom-load, or rail-top access
  • Custom configurations with a horizontal baghouse system for low-headroom installation
  • Centrifugal fan packages w/ fan inlet boxes, outlet dampers, and discharge silencers
  • Custom electrical control panels
  • Energy saving Eco-gates and VFD controller packages
  • Fire suppression, spark detection, smoke alarms, explosion vents and dampers
  • Waste handling systems with silos, hoppers, cyclone receivers, and centrifugal blower systems
