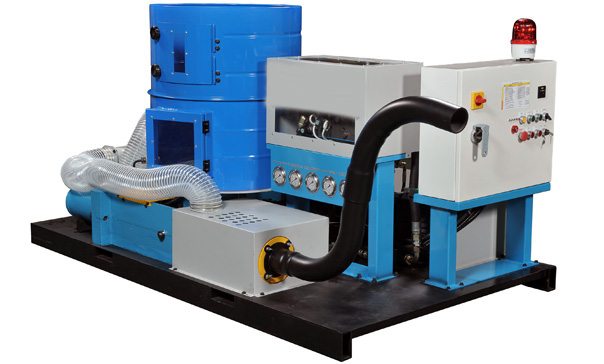

BP-500a



Specifications:

  • Motor: 7.5 HP
  • Briquette Diameter: 65 mm
  • Production (kg/hr): 15~70
  • Bin Capacity: 0.28 m3
  • Dimensions: 217 x 127 x 117 cm
  • Machine Weight: 830 kgs
  • Max Pressure: 200~220 kgf/cm2
  • Electrical control board
  • Hydraulic oil cooling fan
  • Tube cooling system

BP-1000a



Specifications:

  • Motor: 10 HP
  • Briquette Diameter: 76 mm
  • Production (kg/hr): 30~80
  • Bin Capacity: 0.26 m3
  • Dimensions: 217 x 127 x 117 cm
  • Machine Weight: 830 kgs
  • Max Pressure: 200~220 kgf/cm2
  • Electrical control board
  • Hydraulic oil cooling fan
  • Tube cooling system

Click Here for a Complete Feature Overview
